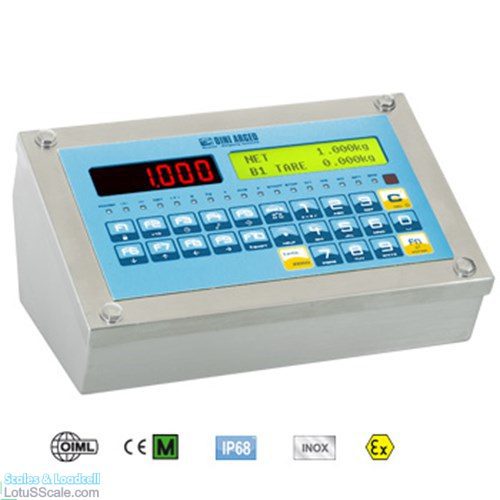

Dini Argeo 3590EXT 3GD Electronic Weighing Indicator – Safe Weighing Solution for Hazardous Areas
Are you looking for a Dini Argeo electronic weighing indicator that is durable, precise, and strictly compliant with ATEX explosion-proof standards? The Dini Argeo 3590EXT 3GD explosion-proof display is the ideal choice for weighing systems operating in hazardous Zone 2 and Zone 22 environments. The device combines modern technology and high accuracy to ensure absolute safety for production processes.
Dini Argeo 3590EXT 3GD ATEX Explosion-Proof Indicator – Durable, Precise, and Internationally Certified
The 3590EXT 3GD weighing indicator is specially designed for explosive environments caused by gases or dust. It is certified for ATEX and IECEx explosion protection, ensuring maximum safety for businesses. The device features a stainless steel IP68 waterproof, corrosion-resistant enclosure, ideal for harsh environments such as chemical plants, manufacturing workshops, and fuel storage areas.
Key Technical Features of the 3590EXT 3GD Weighing Indicator:
- 25-key physical waterproof keypad for easy operation even with gloves.
- 6-digit red LED display, 15mm high, providing clear visibility in all lighting conditions.
- Backlit 25x100mm graphic LCD screen.
- Status indicator bar with 16 bright LEDs for quick monitoring of active functions.
- Stainless steel waterproof enclosure, IP68 rated, easy to clean, resistant to corrosion.
- Dimensions: 264 x 115 x 174 mm, suitable for table, column, or wall mounting.
- Integrated real-time clock and permanent data storage.
- Alibi memory embedded on the mainboard for legal traceability data storage.
- Supports DINITOOLS software for configuration, calibration, data entry, and print formatting.
- Complete data backup and restoration for quick equipment replacement.
- 24-bit A/D converter, 4 independent channels, up to 3200 measurements per second, with up to 8 signal linearisation points.
- Accuracy up to 10,000e OIML or multi-range 3 x 3000e @ 0.3 µV/e CE-M trade approval.
- Display capability of up to 1,000,000 divisions, internal resolution up to 3,000,000 points.
- Power supply: 110-240 Vac.
- Manages up to 4 independent scales simultaneously (AF03 version supports up to 2 scales).
- Connects up to 16 x 350 Ohm load cells or 45 x 1000 Ohm load cells.
- Supports connection to printers and labelers with specific command drivers.
Explosion-Proof Standards for the 3590EXT 3GD ATEX Indicator:
- ATEX II 3G Ex nR IIC T6 Gc X: Safe for flammable gas environments.
- ATEX II 3D Ex tc IIIC T85°C Dc IP68 X: Safe for combustible dust environments.
The product meets ATEX and IECEx international standards, CE-M approved according to OIML R-76 / EN 45501, suitable for applications requiring high accuracy and strict explosion protection.
