TE Series Single-Cell Platforms for ATEX finish stainless steel
Certified ATEX explosion-proof weighing solution with AISI 304 stainless steel construction, IP67 protection, and precision C3 standards.
| Certificated | |
|---|---|
| Protection Class | |
| Load capacity | |
| Material | |
| Precision class |

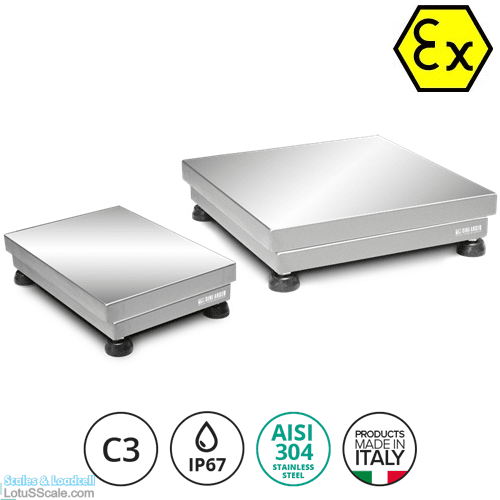

Dini Argeo TE Series Stainless Steel Electronic Platforms – Superior Safety ATEX Explosion-Proof Weighing Solution
Dini Argeo TE Series electronic platform is the perfect choice for harsh industrial environments, especially in areas with explosion hazards or strict hygiene requirements. The product is entirely made from durable AISI 304 stainless steel, combined with internationally certified explosion-proof load cells, ensuring absolute safety and precision during operation.
Outstanding Advantages of Dini Argeo Explosion-Proof Safe Platform
- Explosion-proof load cell made of stainless steel, OIML R60 certified, dust and water resistant according to IP67 standard.
- AISI 304 stainless steel structure from frame, mechanics to weighing surface, ensures superior durability and corrosion resistance.
- Adjustable stainless steel feet with non-slip plastic base and convenient leveling system.
- 3-meter connection cable with anti-interference shield, IP65 water and dust resistance.
- High precision class C3, C3MR guarantees fast, accurate, and stable weighing results.
Note: Customers can upgrade the Dini Argeo TE EX Platform to ATEX explosion-proof version with:
- CCATEX: ATEX certificate for each load cell.
- DCATEXMECH: ATEX conformity declaration for the entire platform (applies when ordered without an indicator, please refer to the chosen Dini Argeo indicator’s certifications).
Standards of ATEX Explosion-Proof Platform TE Series
- Full body material: Satin-finished AISI 304 stainless steel, corrosion-resistant.
- Stainless steel load cell, IP67 dust and water protection.
- Robust mechanical structure, easy-to-clean weighing surface.
- Adjustable stainless steel feet with excellent anti-slip feature.
- 3-meter shielded cable connection, IP65 protection against dust and water.
- High precision class C3, C3MR according to international standards.
Technical Specifications of the EX Platform
| Options for ATEX Version CCATEX: ATEX certificate for each load cell. DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications. | Available Upon Price Estimate Special sizes and capacities.Structure in AISI316 stainless steel. Fully-welded IP68/IP69K stainless steel load cell, specific for use in wet environments. | Other Roller conveyors are not available in ATEX version. |
| Code | l x w x h (mm) | Max (kg) | d (g) | M (g*) | M 2R (g)* | d HR (g)* |
|---|---|---|---|---|---|---|
| TSE3 | 230x330x90 | 3 | 0,5 | 1 | 0,5-1 | 0,2 |
| TSE6 | 230x330x90 | 6 | 1 | 2 | 1-2 | 0,5 |
| TSE15 | 230x330x90 | 15 | 2 | 5 | 2-5 | 1 |
| TTE6 | 330x330x90 | 6 | 1 | 2 | 1-2 | 0,5 |
| TTE15 | 330x330x90 | 15 | 2 | 5 | 2-5 | 1 |
| TTE30 | 330x330x90 | 30 | 5 | 10 | 5-10 | 2 |
| TQE15 | 400x400x115 | 15 | 2 | 5 | 2-5 | 1 |
| TQE30 | 400x400x115 | 30 | 5 | 10 | 5-10 | 2 |
| TQE60 | 400x400x115 | 60 | 10 | 20 | 10-20 | 5 |
| TQE150 | 400x400x115 | 150 | 20 | 50 | 20-50 | 10 |
| TME30 | 400x500x115 | 30 | 5 | 10 | 5-10 | 2 |
| TME60 | 400x500x115 | 60 | 10 | 20 | 10-20 | 5 |
| TME150 | 400x500x115 | 150 | 20 | 50 | 20-50 | 10 |
| TCE60 | 500x500x115 | 60 | 10 | 20 | 10-20 | 5 |
| TCE150 | 500x500x115 | 150 | 20 | 50 | 20-50 | 10 |
| TLE60 | 500x600x137 | 60 | 10 | 20 | 10-20 | 5 |
| TLE150 | 500x600x137 | 150 | 20 | 50 | 20-50 | 10 |
| TLE300 | 500x600x137 | 300 | 50 | 100 | 50-100 | 20 |
| TXE60 | 600x600x137 | 60 | 10 | 20 | 10-20 | 5 |
| TXE150 | 600x600x137 | 150 | 20 | 50 | 20-50 | 10 |
| TXE300 | 600x600x137 | 300 | 50 | 100 | 50-100 | 20 |
| TGE150 | 700x700x165 | 150 | 20 | 50 | — | 10 |
| TGE300 | 700x700x165 | 300 | 50 | 100 | 50-100 | 20 |
| TGE600 | 700x700x165 | 600 | 100 | 200 | 100-200 | 50 |
(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
| Roll Cover Plate | Platform | Only for internal use | Legal for trade |
|---|---|---|---|
| TTE-RP | TTE30 | X | X |
| TQE-RP | TQE15 | X | – |
| TQE30 | X | – | |
| TQE60 | X | X | |
| TQE150 | X | X | |
| TXE-RP | TXE60 | X | X |
| TXE150 | X | X | |
| TXE300 | X | X |
NOTE: not available in ATEX version.
Available Versions
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
 | TSE3 | Platform made of AISI304 stainless steel, IP67, Max=3kg, d=0,5g, 230x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TSE6 | Platform made of AISI304 stainless steel, IP67, Max=6kg, d=1g, 230x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TSE15 | Platform made of AISI304 stainless steel, IP67, Max=15kg, d=2g, 230x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
 | TTE6 | Platform made of AISI304 stainless steel, IP67, Max=6kg, d=1g, 330x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TTE15 | Platform made of AISI304 stainless steel, IP67, Max=15kg, d=2g, 330x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TTE30 | Platform made of AISI304 stainless steel, IP67, Max=30kg, d=5g, 330x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TQE15 | Platform made of AISI304 stainless steel, IP67, Max=15kg, d=2g, 400x400mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TQE30 | Platform made of AISI304 stainless steel, IP67, Max=30kg, d=5g, 400x400mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TQE60 | Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 400x400mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TQE150 | Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 400x400mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TME30 | Platform made of AISI304 stainless steel, IP67, Max=30kg, d=5g, 400x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TME60 | Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 400x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TME150 | Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 400x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TCE60 | Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 500x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TCE150 | Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 500x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TLE60 | Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 500x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TLE150 | Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 500x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TLE300 | Platform made of AISI304 stainless steel, IP67, Max=300kg, d=50g, 500x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TXE60 | Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 600x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TXE150 | Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 600x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TXE300 | Platform made of AISI304 stainless steel, IP67, Max=300kg, d=50g, 600x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TGE150 | Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 700x700mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TGE300 | Platform made of AISI304 stainless steel, IP67, Max=300kg, d=50g, 700x700mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult | |
| TGE600 | Platform made of AISI304 stainless steel, IP67, Max=600kg, d=100g, 700x700mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services. | Consult |
Practical Applications of Dini Argeo TE Electronic Platform
The product is widely trusted in:
- Food factories, seafood processing plants with strict hygiene requirements.
- Chemical plants, pharmaceutical areas, or environments with explosion risks.
- Warehouses, gas stations, laboratories requiring precise weighing with explosion-proof safety.
- Automatic weighing systems integrating high-quality explosion-proof load cells.
FAQ – Frequently Asked Questions about Dini Argeo TE EX Platform
1. Can the Dini Argeo TE ATEX explosion-proof platform operate outdoors?
The product is dust and water resistant according to IP67 standards, suitable for outdoor use. However, it is recommended to follow the installation and operation guidelines from the manufacturer to ensure maximum durability.
2. Can the Dini Argeo explosion-proof safe platform connect to a data management system?
Absolutely. The product supports connection to ATEX-certified Dini Argeo indicators, easily integrating into control, automation, or management software systems.
3. Can the Dini Argeo TE EX Platform be customized in size?
Customers can order custom sizes and capacities. Additionally, the platform can be upgraded to full AISI 316 stainless steel or sealed IP68/IP69K load cells to meet specific environments such as high-pressure sanitation or wet areas.
“Investing in the right Dini Argeo electronic platform helps businesses operate safely, accurately, and improve production efficiency.”
Find out more about the product at Golden Lotus MEC – Hotline: 028 0906 903 369 / 0901 334 669 – or visit: https://lotusscale.com
