LTS Double Pallet Truck Scale – Quick Installation, DIN15173 – FEM Class III Compliant

• The LTS Double Plate pallet truck scale brings a completely new approach to operations, allowing users to monitor load weight while lifting and lowering goods. With professional consultation from Golden Lotus company, forklift weighing solutions can be optimized to ensure safety, reduce losses and improve warehouse productivity. As a result, the product becomes an essential tool for modern production environments.
• Furthermore, the LTS Double Plate pallet truck scale is designed according to international industrial standards and is suitable for various forklift types and demanding environments. The system not only provides real-time load monitoring but also improves goods management efficiency through flexible connection with various indicators and wireless solutions. This makes it an optimal choice for businesses looking to improve overall operating efficiency.

Key Technical Features of the LTS Double Plate Pallet Truck Scale

The LTS Double Plate pallet truck scale systems are constructed from thick powder-coated steel and equipped with high-sensitivity S-Type load cells rated at 2 mV/V, providing ±0.1% accuracy even when the forklift is tilted within ±2°.

In addition, the compact design does not obstruct the operator’s visibility, ensuring maximum safety. With an overload capacity of up to 300%, the equipment maintains outstanding durability under demanding industrial conditions.

Flexible Connectivity with Auxiliary Devices

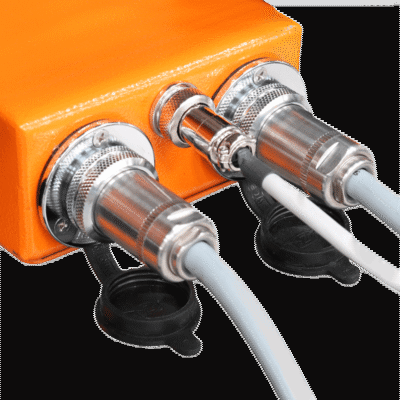

The industrial forklift weighing system supports various indicators, wireless solutions and hermetically sealed waterproof junction boxes, ensuring long-term durability and stability.

The LTS Double Plate system can be easily connected to various Dini Argeo electronic weighing indicators, with multiple models and material options such as ABS plastic or 304 stainless steel. It can also be equipped with an integrated thermal printer or Wi-Fi connectivity.

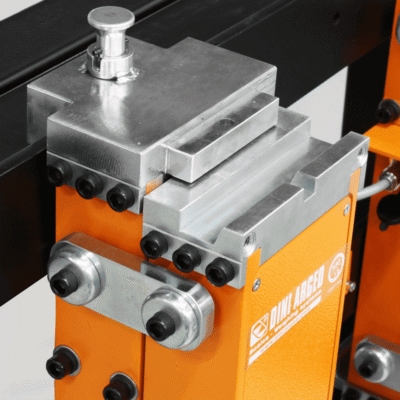

Dini Argeo S-Type load cell: sensitivity 2 mV/V, maximum supply voltage 15 VDC, with integrated protection against accidental impacts to the load cell.

Optimizing Operating Productivity and Lifting Safety

By enabling weighing while the forklift is moving, the electronic forklift weighing system reduces the time required for separate weighing operations while improving safety through accurate load monitoring during each handling operation.

Compact Design Suitable for Various Forklifts

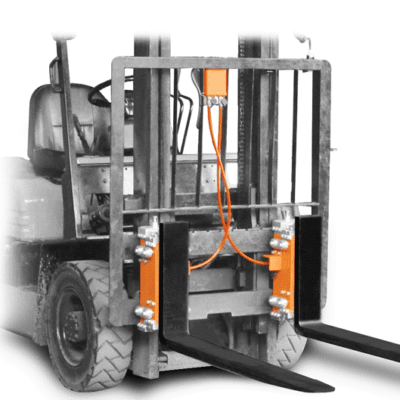

With each plate measuring only 585 × 265 mm and a depth of 152 mm, the equipment can be easily installed on various forklifts compliant with DIN15173 – FEM Class III.

High Durability in Industrial Environments

Shock and impact resistance, combined with load cell protection, enables the system to perform reliably in demanding environments such as factories, warehouses and loading yards.

Get the LTS Double Plate pallet truck scale solution to optimize business operations and improve accuracy and safety in every lifting and handling operation. Contact us for quick support!

• To better understand its practical applications, it is important to first consider the role of forklift weighing systems in logistics processes. The equipment provides real-time load measurement, minimizes inventory discrepancies and supports effective goods monitoring.
• The integrated weighing system allows warehouse and logistics operators to monitor weight data directly, helping prevent overloading and optimize forklift maintenance costs.
• In addition, with quick installation and simple operation, goods weight can be determined directly at the working location without moving them to fixed weighing platforms. This significantly saves time and labor.

FAQ – Dini Argeo Electronic Forklift Weighing Solution

How does the pallet truck weighing system work?

The equipment uses load cells integrated into the plates, transmitting signals to the indicator to determine the weight of goods in real time.

Can an electronic weighing system be installed on all types of forklifts?

Most forklifts compliant with DIN15173 – FEM Class III can be equipped with the system, depending on fork length and frame structure.

Is maintenance of the forklift weighing system complicated?

Maintenance is simple and mainly involves cleaning the plates, checking connection cables and performing periodic calibration according to the frequency of use.

If your business is looking for an efficient integrated weighing solution, consider quality products from Golden Lotus company – a trusted provider of electronic weighing, industrial weighing and measurement solutions. The right solution today can deliver significant operational efficiency in the future.
